High quality lightweight heat insulating refractory bricks jm 23/26/28/30 heat insulating refractory bricks
-
$0.50 / 5 - 99 pieces
$0.30 / 100 - 999 pieces
$0.20 / >=1000 pieces - 5 pieces
- Zhengzhou Shuojin Refractory Material Co., Ltd.
- Henan, China
- Mr Edwin Wei
Product Detail
| color: | white | Magnesium oxide content (%): | 0 |
| Origin: | Henan, China | port: | Qingdao Port, Lianyungang |
| Package preview: | Refractoriness (degrees): | Ordinary (1580° | |
| Processing services: | Bending, welding, punching, decoiling, cutting, forming | Operating temperature: | 1260 degrees Celsius |
| size: | 230x114x65mm | Material: | Mullite |
| sample: | provide sample | Bulk density: | 0.5-1.0g/cm3 |
| Silica content (%): | 45% | Package: | carton |
| Packaging Details: | Wooden pallet + plastic wrap | raw material: | Alumina mullite |
| CaO content (%): | 0.01 | shape: | brick |
| Al2O3 content (%): | 60% | Cr2O content (%): | 0 |
| model: | Jamie 23 | Supply capacity: | 50000 pieces per month |
| brand: | Shuo Jin | application: | industrial furnace |
| Aluminum oxide: | 35%~40% | product name: | Insulation brick |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Silicon carbide content (%): | 0 |
jm23 heat-resistant insulation brick jm-26 lightweight mullite brick
Product Description

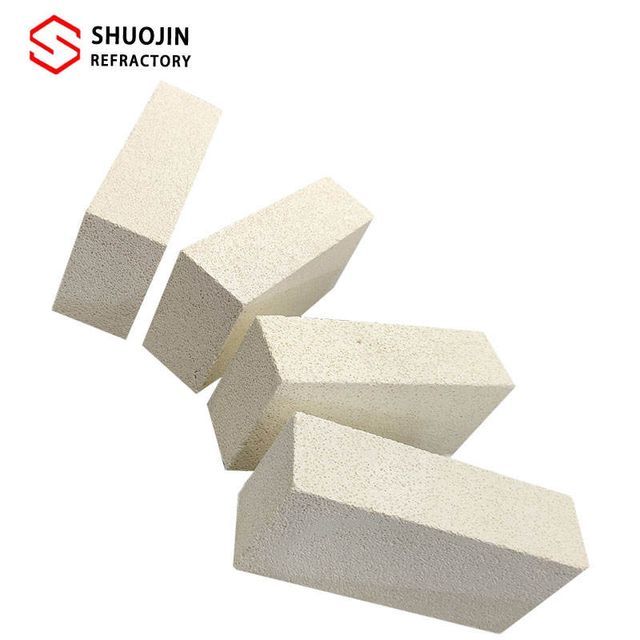

Mullite insulatorion brick
Mullite insulation brick is a high alumina refractory material with mullite as the main crystal phase. In general, the alumina content is between 40% and 70%. The operating temperature range is 1300°C to 1600°C. The advantage of mullite lightweight insulation bricks is that they can be exposed to flames and can be directly used as linings for high-temperature kilns. Mullite lightweight insulation brick is a refractory insulation material widely used in new industrial kilns and high temperature equipment.
Features of Mullite Insulation Bricks
●low thermal conductivity
●High strength, corrosion resistance
●low heat capacity
●low impurity content
●High temperature resistance
●Good insulation performance
●good thermal shock resistance
●lower bulk density
Mullite insulation brick application
●Metallurgical industry
●petrochemical industry
●Ceramic building materials industry
●glass industry
●Carbon industry
●Aluminum electrolysis industry
●other industry
product specification
brand | JM-23 | JM-26 | JM-28 | JM-30 | ||
Al2O3(%)min | 40 | 56 | 65 | 68 | ||
Fe2O3(%)≤ | 1 | 1 | 0.7 | 0.5 | ||
SiO2(%)max. | 45 | 40 | 36 | 29 | ||
Safe use temperature(℃)max | 1260 | 1430 | 1540 | 1650 | ||
Bulk density (g/cm3) | 0.5 | 0.8 | 0.95 | 1.05 | ||
Bending strength (Mpa)min | 0.7 | 1.1 | 1.6 | 2 | ||
Crushing strength (Mpa) min | 1 | 2 | 2.3 | 2.7 | ||
Thermal conductivity (w/mk)max | 600°C | 0.17 | 0.31 | 0.36 | 0.43 | |
800℃ | 0.19 | 0.33 | 0.39 | 0.45 | ||
1000℃ | 0.24 | 0.35 | 0.42 | 0.48 | ||
Reversible thermal expansion at 1090°C (%) max | 0.5 | 0.6 | 0.8 | 0.9 | ||
They can be used as insulating or non-corrosive parts of the working layer. The products have been widely used in the following industries and achieved good results:
● Metallurgical industry:Blast furnace, hot blast furnace, heating furnace, etc.●Petrochemical industry: Ethylene cracking furnace, hydrogen production furnace, primary reforming furnace, heating furnace, etc.
●Ceramic industry:Roller kiln, pusher kiln, etc.●Glass industry:Glass bath heat accumulator, etc.● Carbon industry:Carbon Baking Furnace, etc.● Aluminum electrolysis industry:Aluminum electrolytic cell, etc.● Other industries:Tunnel kiln, shuttle kiln, etc.
